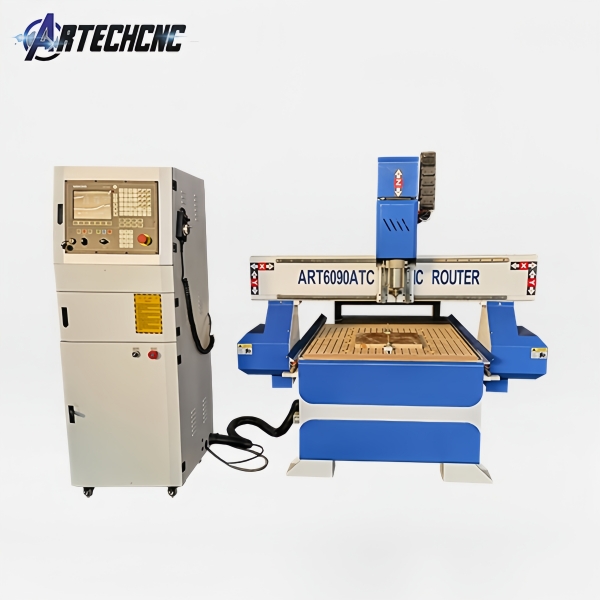

The 6090ATC is a wood cnc router with automatic tool change spindle function, using belt drive, vacuum adsorption table and dimensional macro control system.
| Machine Type | cnc router machine |
| Number of Axes | 3 axis |
| No. of Spindles | 1 spindle |
| CNC or Not | cnc |
| Place of Origin | China |
| Weight (KG) | 1000 |
| Warranty | 1 year |
| Key Selling Points | Automatic |
| Range of Spindle Speed(r.p.m) | 24000 |
| Positioning Accuracy (mm) | 0.3 |
| Travel (X Axis)(mm) | 600 |
| Travel (Y Axis)(mm) | 900 |
| Repeatability (X/Y/Z) (mm) | 0.3 |
| Brand Name | ARTECH |
| Voltage | 220V/380V |
| Dimension(L*W*H) | 1500*1500*1400mm |
| Power (kW) | 18 |
| Machinery Test Report | with |
| Video outgoing-inspection | with |
| Warranty of core components | 1 year |
| Core Components | Software |
| Product name | ART6090ATC cnc router-1 |
| Application | wood engraving cutting |
| Spindle | 2.2kw water cooling spindle |
| Control system | WEIHONG |
| Table Surface | Vacuum table |
| Motor | Servo motor |
| Inverter | Fuling |
| Software | Artcam |
| Guide rail | HIWIN |
| Transmission | XY gear rack, Z ball screw |
| Applicable Material | wood, acrylic, stone |
| Applicable Industries | furniture, advertising |
Product Feature and Application
Feature
1.Automatic tool changer for cnc router with 4sets of tools to change automatically, which can saving time of tools changing and improving working efficiency.
2.Vacuum table using high-density material with great suction strength, comfortably accommodating all sizes of work piece.
3.WEIHONG control system is simple, convenient and easy to learn, users can quickly get the flexibility to master the use of equipment, strong independence.
4.The rotary allows for better machining of cylindrical shapes.
Application
1.Woodwork: Furniture, Sound box, game machine box, computer desk, sewing machine table and musical instrument.
2.Panel Machining: Insulating parts, plastic and chemical parts, PCD, inner body of bullet train, bowling ramps and stairways, epoxy resin, ABS, PP and PE.
3.Decoration Industry: Carving, milling and cutting processing of acrylic, PVC, density board, artificial stone, PMMA, plastic and soft metal plates including copper plate and aluminum plate.
Production Details
With 4sets of tools to change automatically, which can saving time of tools changing and improving working efficiency.
WEIHONG control system is simple. The hand wheel is more convenient to control the machine Easy to learn, users can quickly get the flexibility to master the use of equipment, strong independence.
Servo motor, faster than stepper motor, higher accuracy, better quality and more durable.
